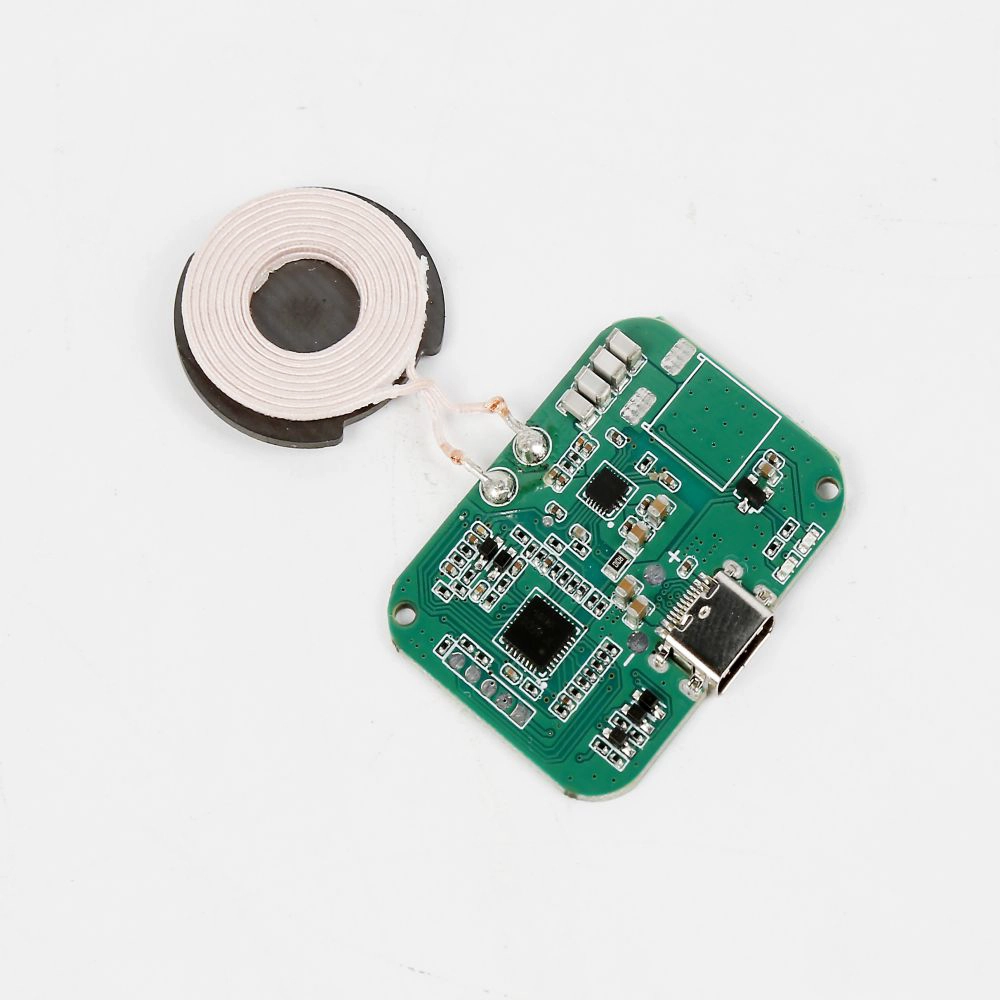

Wireless charging Pcb Module Customization small coil for mobile phones

  • Input Power:4.75V~12.25V
  • Input current :1A -2A Max
  • Output Power:5W 7.5W 10W 15W
  • Charging distance:2~8mm
  • PCBA board size:40*30*3MM
  • On-board device height:1.7MM
  • Coil size:diameter 24MM
  • Base material:FR4 , Any specialized material as for your choice
  • MOQ:1 piece
  • Wireless Charging Efficiency:>80%
  • Working Temperature: -20℃ to 55℃
  • Usage: for mobile phone wireless charging, for car wireless charging,for sports devices
  • Certificate: SMETA, ISO 9001, RoHs,REACH, FCC, KC, CE, BSMI, QI

1. The HG-S7 chip supports PD, QC2.0, QC3.0, and AFC fast charging protocols
2. The highest output rated power to the receiving end: 15W
3. static FOD & dynamic FOD when working
4. OTP , OCP , OVP , UVP
5. Can pass KC, FCC, CE, BSMI, NCC, BPP 5W QI certification, EPP 10W / 15W_QI certification
6. Support Type-C interface communication upgrade
7. High degree of program integration, ultra-simplified peripheral circuits



    Shenzhen Huagon Technology Co., Ltd. is located in Dalang Longhua District, Shenzhen. With a history of ten years, we are an innovative service-oriented enterprise focusing on providing all-round customized services.
    The company is mainly engaged in the R & D and production of wireless charging PCBA, wireless charger, vehicle mounted wireless charger, furniture wireless charger, wireless transmitter & receiver and mobile power supply.
    Product quality is the priority guarantee of our company. Our business philosophy is to create profits for customers and solve customers' concerns.At present, the company has passed IOS9001,KC, CE, ROHS, FCC , QI, QC3.0, QC2.0 certifications and SMETA. We are a company with a sense of social responsibility and focuses on sustainable development.Our products are exported to more than 20 countries , such as the United States, Britain, Germany,Australia, South Korea, Brazil, Slovakia, and so on. We have been unanimously recognized by customers, and have won a large number of loyal customers and partners.

click  wireless charging module China manufatures to know more.





















Quality priores first! To ensure our 100% top quality, we have IQC(Incoming Quality Control),IPQC(In Put Process Quality Control),FQC(Finish or Final Quality Control),OQC(Out Quality control)to ensure our product quality. What's more, we have two times 100% product check in our assembly line and two times 100% pcba check in our smt prouduction line.







We have more than 20 engineers, PCBA painters and 3D designers, a team focusing on the research and application of electronic charging modules. Our production team has more than 80 people, daily delivery forPCBA module reaches over 30,000 units With this amazing team, we can provide you :


1. Services for PCB schematic design, layout , mechanical design, moldopening.
2. SMD for PCB and finally product assembly.
3. 100% inspection before packaging and transportation.
4. High quality after-sales service with 3 years warranty .


Welcome to visit our factory and hope to cooperate with you for a longtime.
