Huagon Custom PCBA Manufacturing: 7 High-Efficiency SMT Lines

In electronics manufacturing, the quality and capacity of Printed Circuit Board Assembly (PCBA) determine a product's market success. As a leading Electronic Manufacturing Services (EMS) provider, Huagon delivers premium, high-precision customized PCBA services through our 7 advanced SMT (Surface Mount Technology) lines and a strict, closed-loop quality control system.

1. Core Capability: 7 Advanced SMT Lines

To guarantee fast delivery for high-volume orders and seamless flexibility for High-Mix Low-Volume (HMLV) projects, Huagon operates 7 dedicated, 24/7 automated SMT lines. These lines handle complex, high-density component placement to accelerate your product's Time-to-Market.

• High Flexibility: 7 dynamically scaled lines adapt to any order volume, from quick-turn prototyping to mass production.

• Ultra-Precise Placement: Equipped with industry-leading YAMAHA high-speed mounters for micro-sized and fine-pitch components.

• End-to-End Quality: Full automation minimizes manual handling and ensures total traceability.

2. Advanced Equipment & Precision SMT Process

Huagon’s SMT lines integrate premium automated machinery to guarantee flawless assembly at every stage:

• Boarding Machine: Automatically feeds blank PCBs into the line, eliminating manual handling and surface contamination.

• Fully Automatic Paste Printer: Deposits solder paste onto pads with micron-level precision using advanced vision alignment.

• High-Speed Mounters (YAMAHA): Provides rapid, accurate placement for components ranging from tiny passives to complex BGAs/QFNs.

• Reflow Solder Oven: Uses precise multi-zone thermal profiling to melt solder paste into reliable, high-strength joints.

• AOI (Automated Optical Inspection): Conducts 100% automated optical scans post-reflow to intercept any alignment or soldering defects.

• Automatic Chip Burner: Programs custom firmware directly during production for a true turnkey hardware-software solution.

• First Piece Detector: Verifies the very first production board via comprehensive LCR measurements before mass assembly begins.

3. Your Trusted Partner for Global PCBA Solutions

At Huagon, we combine lean manufacturing with advanced engineering. Our 7 automated SMT lines serve global clients across Automotive Electronics, Industrial Control, Smart Home, Medical Devices, and Consumer Electronics.

Whether you need rapid prototyping or dependable mass production, Huagon is your premier manufacturing foundation. Contact our expert team today for professional PCBA technical support and competitive quotes.

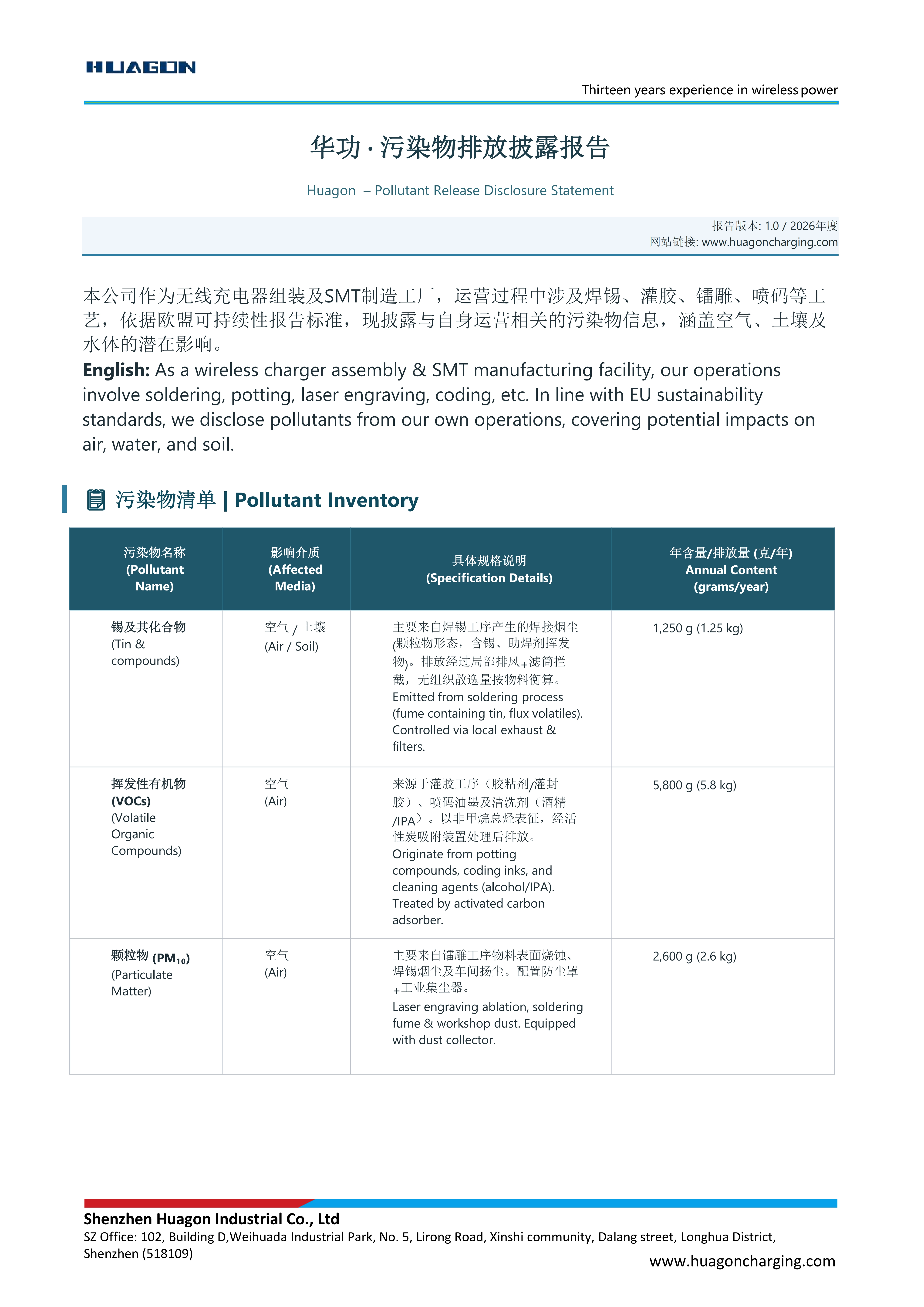

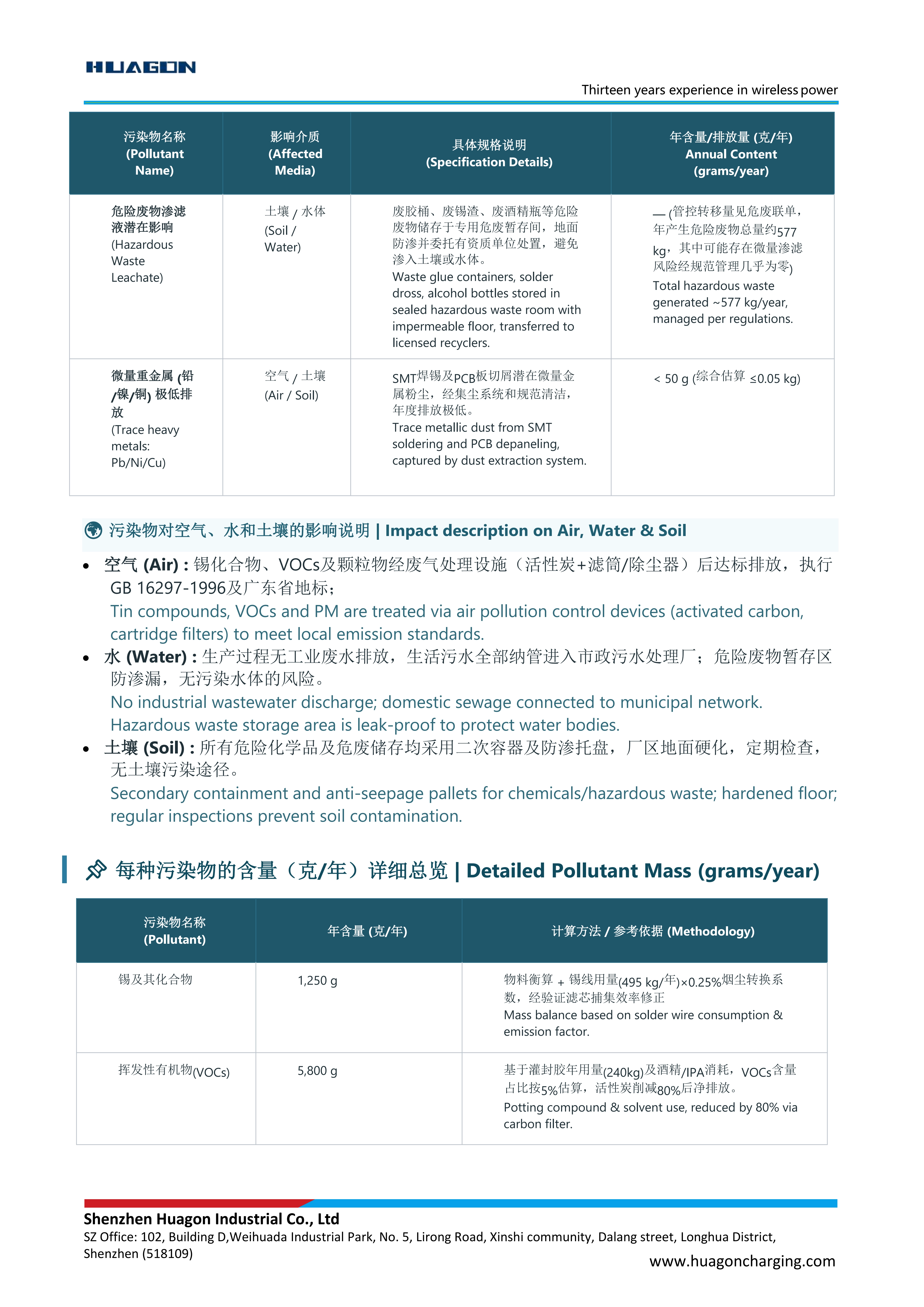

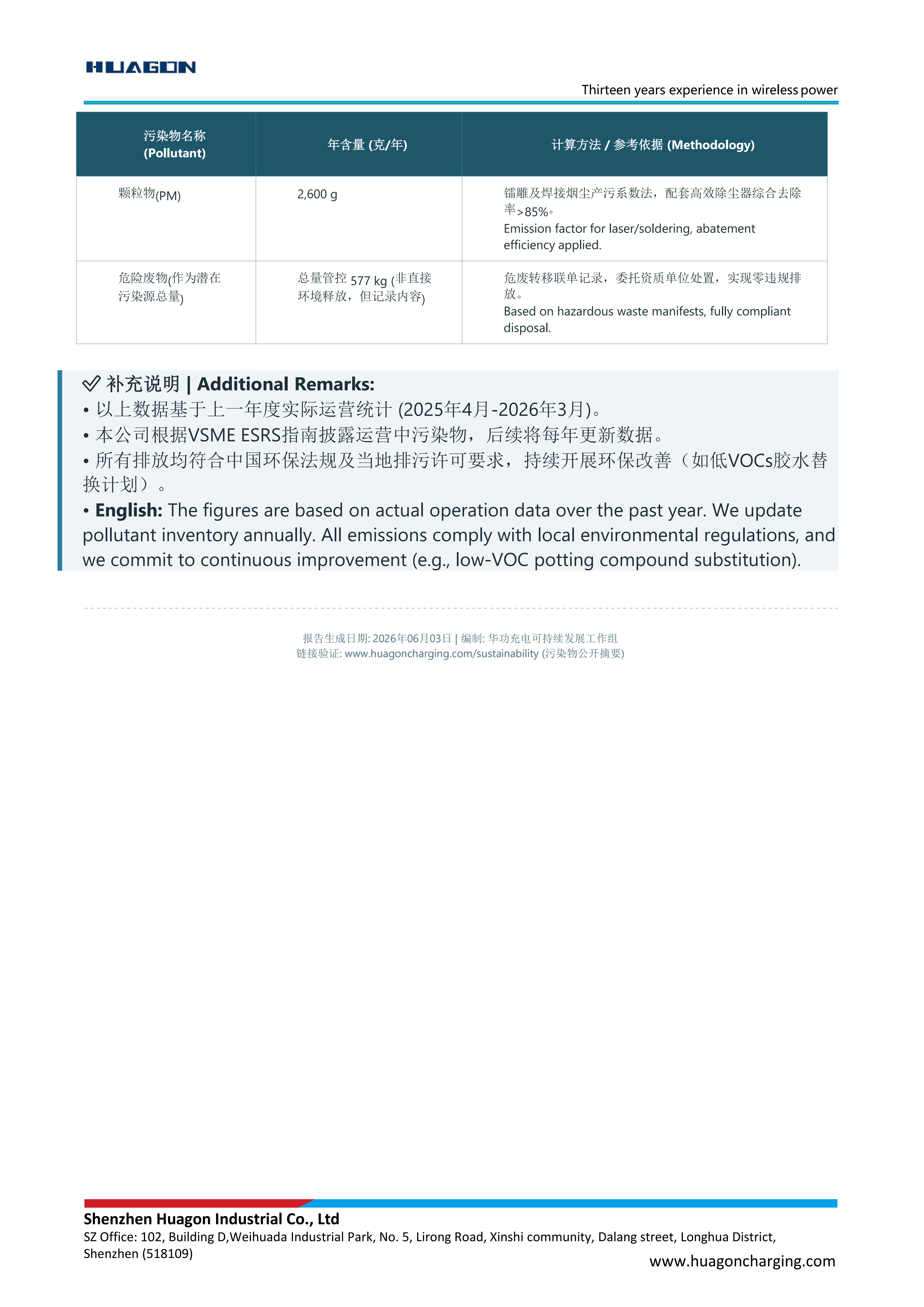

Here is the Huagon-Pollutant Release Disclosure Statement:
