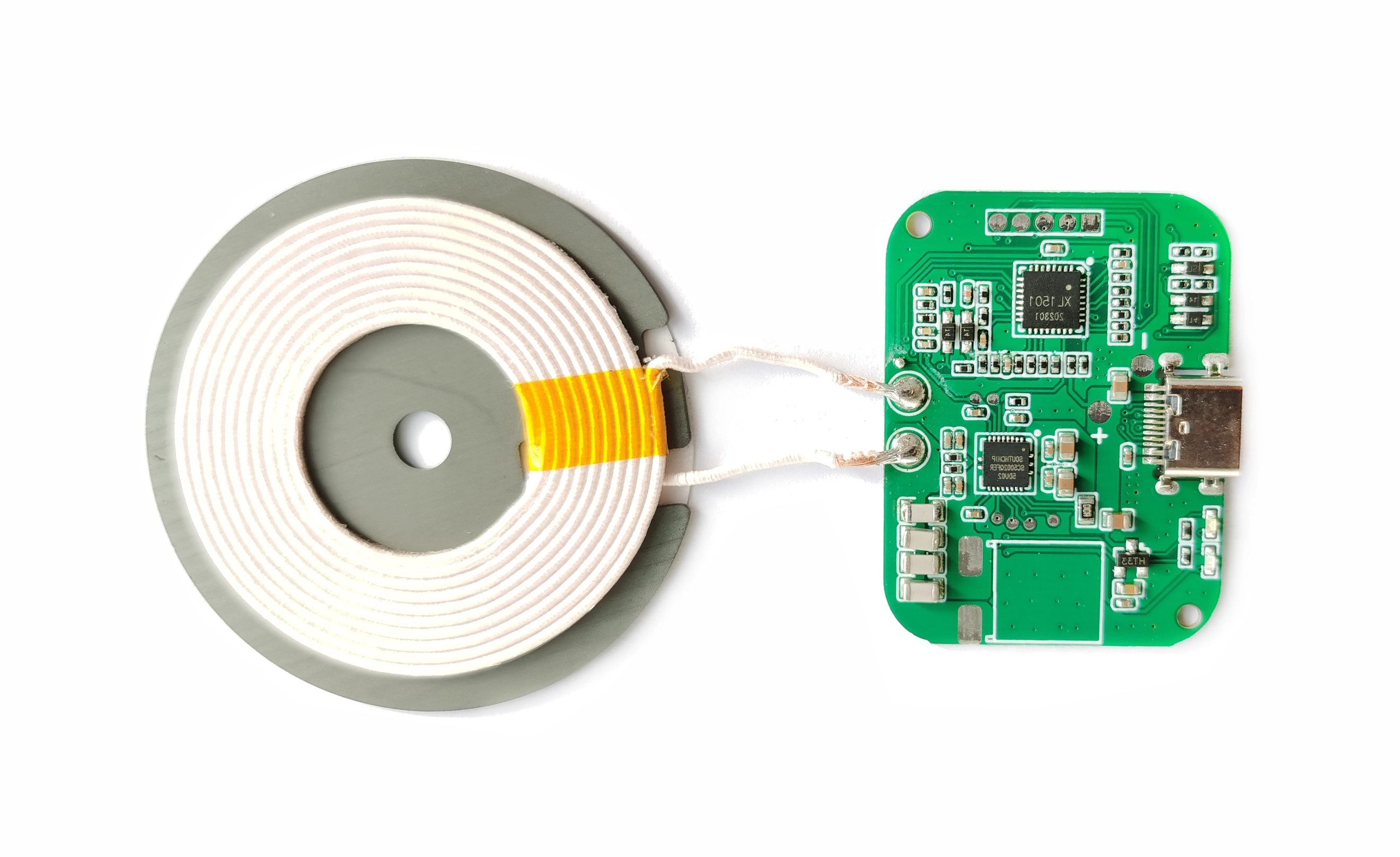

HUAGON Universal Portable custom wireless charger Coil Inductive 5v 9v Wireless Charging transmitter Module
- Input Power:PD+QC3.0 5V3A 9V2A 12V1.67A
- Coil size:Diameter 45mm or 50mm
- Certification:CE
- Working distance:3-15mm
- Function:universal wireless charger module,Qi
- Type:Electric,Wireless Charger
1、Product advantages:
1. Support 5W 10W 15W fast wireless charging to mobile phone
2. Wireless Charging distance 3-10 mm
3. Support QC3.0,PD, AFC, charging protocol
4. 85% high wireless charging efficiency
5. OVP design 15V / OCP design 2A / OTP design 65℃
6. Product quality guarantee period is 3 years
|
Product eEmbedded
|
|
wireless charger module
|
|
|
|||
|
Types of
|
|
QI 1.1 Version Solution
|
|
|
|||
|
Be applicabl
|
|
Wireless Power Transmitter Module , Compatible with all Qi Standard4. Size : you demand
|
|
|
|||
|
Input
|
|
DC 5V2A /9V2A / 12V1A
|
|
|
|||
|
Output
|
|
5V/1A 9V1.67A
|
|
|
|||
|
Power Output
|
|
5W 10W 15W
|
|
|
|||
|
standby current
|
|
<10mA
|
|
|
|||
|
Transmitting frequency
|
|
105K-205KHZ
|
|
|
|||
|
charging distance
|
|
3mm~10mm (max)
|
|
|
|||
|
Protectoin
|
|
Over-current / overheating / short circuit
|
|
|
|||
|
LED
|
|
RED / BLUE
|
|
|
|||
|
Operating amb. Temp. & Hum
|
|
0°C – 55°C , 10 – 85%
|
|
|
|||
|
Charging efficiency
|
|
70%
|
|
|
|||
|
Certificate
|
|
CEROHSFCC
|
|
|
|||
|
|
Test Conditions
|
Rated value
|
Minimum value
|
Maximum
|
unit
|
|
Standby power consumption
|
Vcc=5V
|
125
|
80
|
150
|
mW
|
|
Operating Voltage |
VCC=5V
|
5
|
4.5
|
5.8
|
V
|
|
|
VCC=9V
|
9
|
8
|
13
|
V
|
|
|
VCC=12V
|
12
|
8
|
13
|
V
|
|
Working current |
VCC=5V
|
1.5
|
0.5
|
1.65
|
A
|
|
|
VCC=9V
|
1
|
0.5
|
1.65
|
A
|
|
|
VCC=12V
|
0.8
|
0.5
|
1.65
|
A
|
|
Working distance
|
Samsung S8 + mobile phone
|
2
|
1
|
10
|
mm
|
|
working frequency
|
Adjust load offset
|
-
|
105
|
205
|
Khz
|
|
Protection current |
VCC=5V
|
1.6
|
1.55
|
1.65
|
A
|
|
|
VCC=9V
|
1.6
|
1.55
|
1.65
|
A
|
|
|
VCC=12V
|
1.6
|
1.55
|
1.65
|
A
|
|
Output Power |
VCC=5V
|
5
|
4
|
5
|
W
|
|
|
VCC=9V
|
10
|
7
|
12
|
W
|
|
|
VCC=12V
|
10
|
7
|
15
|
W
|
|
Transmission efficiency
|
|
80
|
50
|
85
|
%
|
|
Protection temperature
|
|
60
|
55
|
65
|
℃
|

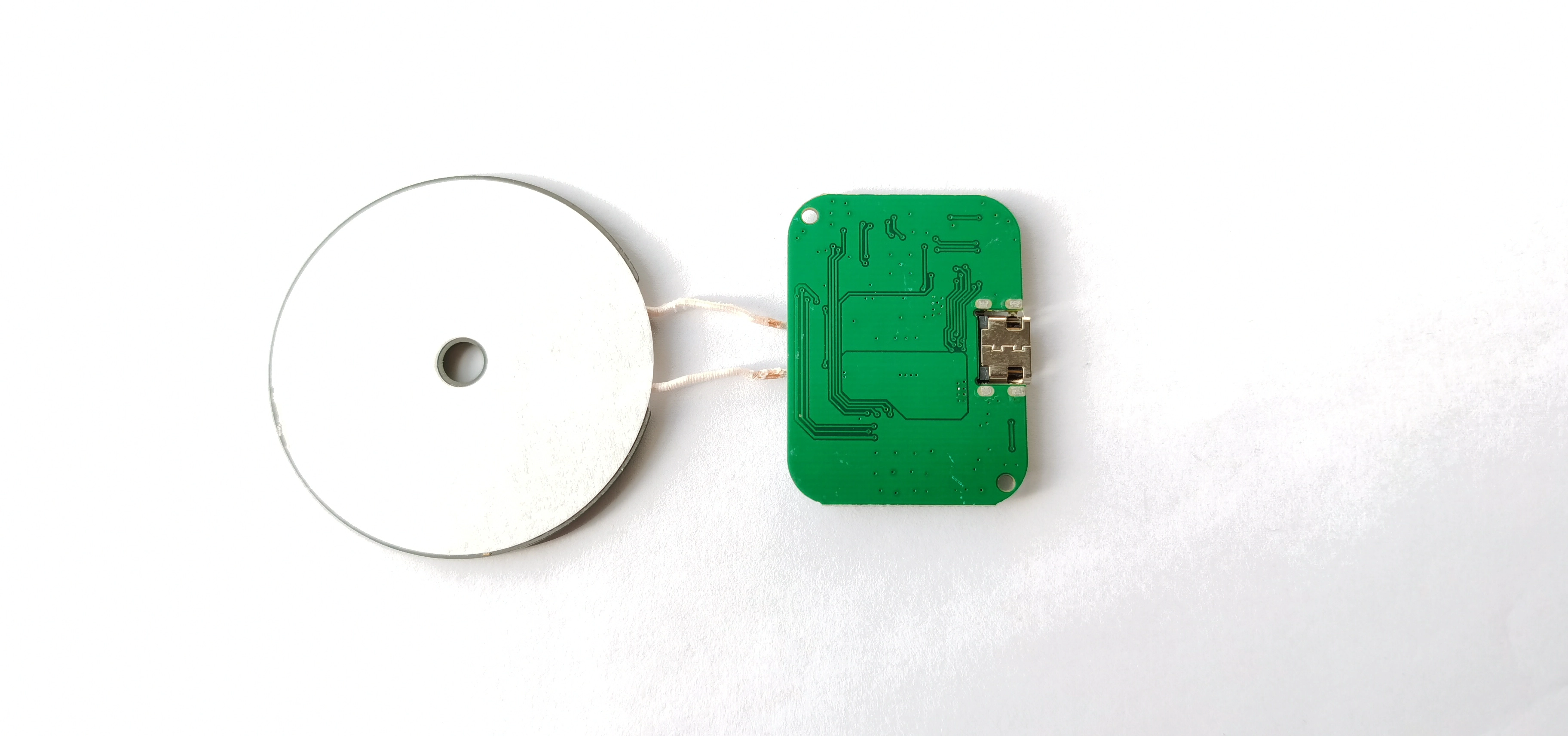

2、PCBA with coil size
|
PCBA board size
|
40*30*3MM
|
|
On-board device height
|
1.7MM
|
|
Coil size
|
50*50*2.5MM
|
|
Coil length
|
15MM
|
3、LED status indication
|
LED
|
Power-on
|
Standby
|
Charge
|
full
|
FOD/Report an error
|
|
Red
|
Red / Blue / turn on and off 1S
|
bright
|
turn off
|
turn off
|
Blue / red alternating 0.3S flash
|
|
Bule
|
|
turn off
|
bright
|
bright
|
|
|
Serial number
|
Brand
|
Model
|
Serial number
|
Brand
|
Model
|
|
1
|
Samsung
|
EP-TA800
|
29
|
hammer
|
CD106
|
|
2
|
Samsung
|
EP-TA845
|
30
|
Nanfu
|
NFTAC203
|
|
3
|
iPhone
|
A2166
|
31
|
Made in Beijing and Tokyo
|
TC-012
|
|
4
|
iPhone
|
A1947
|
32
|
Taiwan Speed Cruiser
|
RY-U32
|
|
5
|
iPhone
|
A1882
|
33
|
Google
|
G1000-US
|
|
6
|
iPhone
|
A1695
|
34
|
Llano
|
HPM6-PD3.0
|
|
7
|
Huawei
|
HW-200325CP0
|
35
|
Ascot
|
EC7C
|
|
8
|
Xiaomi
|
CDQ07ZM
|
36
|
Flash
|
FJ-SW618H-1C
|
|
9
|
Xiaomi
|
AD16ZM
|
37
|
Purple Rice
|
HA711
|
|
10
|
ANKER
|
A2041
|
38
|
Xuan yang
|
XY18W-1204
|
|
11
|
ANKER
|
A2029
|
39
|
Xie Yang
|
XY-0041
|
|
12
|
ANKER
|
A2615
|
40
|
Letv
|
EV-24ACN
|
|
13
|
ANKER
|
A2017
|
41
|
Hechuang Green Energy
|
TC-012
|
|
14
|
ANKER
|
A2616
|
42
|
Yubo
|
RY-U32
|
|
15
|
ANKER
|
A2014
|
43
|
Star speed
|
RY-U32
|
|
16
|
UGREEN
|
CD127
|
44
|
Mcdodo
|
TC-061PD
|
|
17
|
UGREEN
|
CD137
|
45
|
Humixx
|
CDRZ28
|
|
18
|
NetEase Intelligence
|
NIT-TAC-01-PD18W-WH
|
46
|
DIVI
|
P2207
|
|
19
|
NetEase Intelligence
|
NIT-TAC-01-65W-WH
|
47
|
PISEN
|
TS-C118
|
|
20
|
First guard
|
P2207
|
48
|
SDILHD
|
DLP4322C
|
|
21
|
First guard
|
P2208
|
49
|
MOMAX
|
UM12
|
|
22
|
BASEUS
|
BS-CH910
|
50
|
Ravpower
|
RP-PC120
|
|
23
|
BASEUS
|
BS-C915
|
51
|
Airchorge
|
NFDP007
|
|
24
|
Philips
|
DLP5320C
|
52
|
Thinkpllus
|
C45
|
|
25
|
Philips
|
DLP4321C
|
53
|
biaze
|
FC87C
|
|
26
|
Philips
|
BS-CH905
|
54
|
ROCK
|
HPM6-PD3.0
|
|
27
|
Lenovo
|
PA65
|
55
|
Aoqiang
|
OH-W23
|
|
28
|
Tulas
|
CDRA13
|
56
|
ROMOSS
|
AC18C
|
PD adapter protocol capture diagram
Note: All the following are the capture diagrams of the communication protocol measured by the adapter. All test conditions are
decoded and passed, and immediately rises to 9V for fast charging, which is perfectly compatible.
decoded and passed, and immediately rises to 9V for fast charging, which is perfectly compatible.
5、Long-term work aging test
5.1、test environment
Temperature: 26 ° C Humidity: 62 rH
Input: 18W Output: 15W
Load: aging tester
Test working time: 5H
5.1、test environment
Temperature: 26 ° C Humidity: 62 rH
Input: 18W Output: 15W
Load: aging tester
Test working time: 5H
|
Single coil
|
|
|
|
|
|
|
||||||
|
Device surface temperature:
|
SC8101
|
6R8 inductor
|
SC5002
|
HG-S7
|
Resonant capacitor
|
|
||||||
|
BPP scheme single coil:
|
-
|
-
|
44.2℃
|
31.4℃
|
43.1℃
|
|
||||||
|
EPP scheme single coil:
|
48.7℃
|
49.3℃
|
45.3℃
|
37.3℃
|
43.1℃
|
|
||||||
|
Double coil
|
|
|
|
|
|
|
||||||
|
Device surface temperature:
|
SC8101
|
6R8 inductor
|
SC5002
|
HG-S7
|
Resonant capacitor
|
SC8101
|
||||||
|
BPP scheme single coil:
|
-
|
-
|
44.1℃
|
34.6℃
|
43.7℃
|
47.3℃
|
||||||
|
EPP scheme single coil:
|
49.2℃
|
50.1℃
|
45.9℃
|
37.8℃
|
45.2℃
|
47.7℃
|
||||||
6. Wireless charging protection logic design
6.1 FOD metal foreign body detection
Static FOD: After working normally after power-on, when entering standby mode and not working, the static FOD function works. At
this time, place a metal object about 2MM directly above the coil, covering half of the coil, and the metal content reaches a
certain level, At this time, the static FOD triggers and enters the error reporting state, and the indicator flashes immediately
to indicate the error.
Dynamic FOD: After normal operation after power-on, after entering the charging mode from the standby mode, the dynamic FOD
function works. At this time, if there is a metal object between the transmitting coil and the receiving coil, it is converted
according to the transmitting power of the transmitting board and the received feedback power If the loss of conversion efficiency
is too large, it is judged to be affected by metal objects. At this time, dynamic FOD is triggered. This conversion process
depends on the actual situation. Normally, the error state is entered in about 15 seconds, and the error state is entered in up to
1 minute. And the indicator flashes immediately to prompt an error.
6.1 FOD metal foreign body detection
Static FOD: After working normally after power-on, when entering standby mode and not working, the static FOD function works. At
this time, place a metal object about 2MM directly above the coil, covering half of the coil, and the metal content reaches a
certain level, At this time, the static FOD triggers and enters the error reporting state, and the indicator flashes immediately
to indicate the error.
Dynamic FOD: After normal operation after power-on, after entering the charging mode from the standby mode, the dynamic FOD
function works. At this time, if there is a metal object between the transmitting coil and the receiving coil, it is converted
according to the transmitting power of the transmitting board and the received feedback power If the loss of conversion efficiency
is too large, it is judged to be affected by metal objects. At this time, dynamic FOD is triggered. This conversion process
depends on the actual situation. Normally, the error state is entered in about 15 seconds, and the error state is entered in up to
1 minute. And the indicator flashes immediately to prompt an error.
|
Test items
|
Test Conditions
|
Test Results
|
|
Static FOD test
|
Place a 1 yuan coin at 2MM directly above the transmitting coil, and cover the half of the coil.
|
1. No device damage
2. Trigger FOD in about 3 seconds 3. The indicator flashes quickly |
|
Dynamic FOD test 1
|
Use the aging tester as the load, and put a 1 yuan coin between transmission and reception after work
|
1. No device damage
2.Limit output 1.6A 3. FOD is triggered in about 5 seconds 4. The indicator flashes quickly |
|
Dynamic FOD test 2
|
Use Samsung S8 + mobile phone as the load, the interval is 2MM, put 1 yuan coin between transmission and reception after work
|
1. No device damage
2.Limit output 1.6A 3. FOD is triggered in about 5 seconds 4. The indicator flashes quickly |

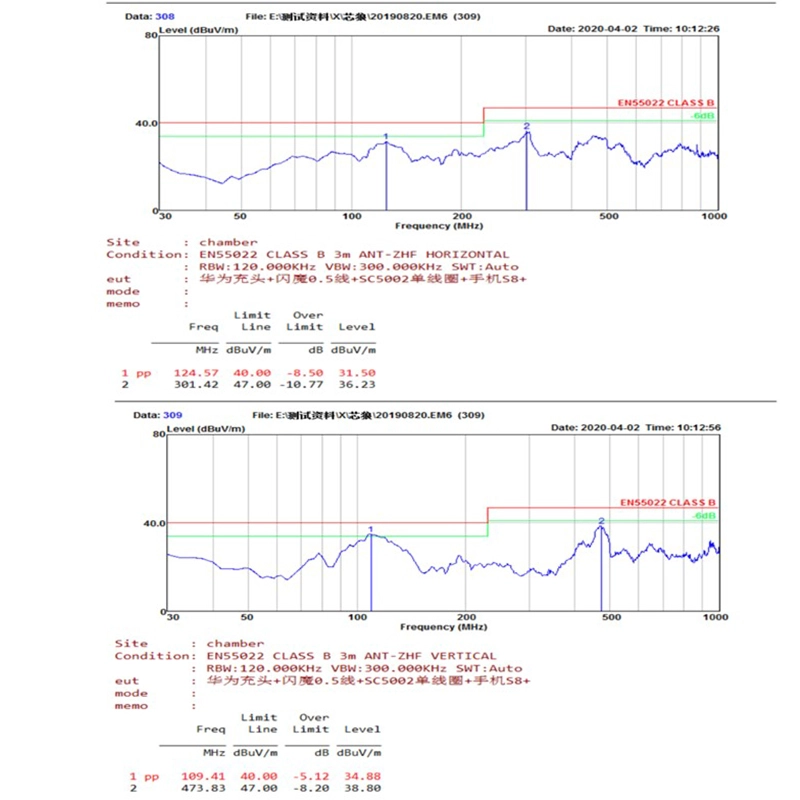

7. Electromagnetic compatibility (EMC) 3M test
